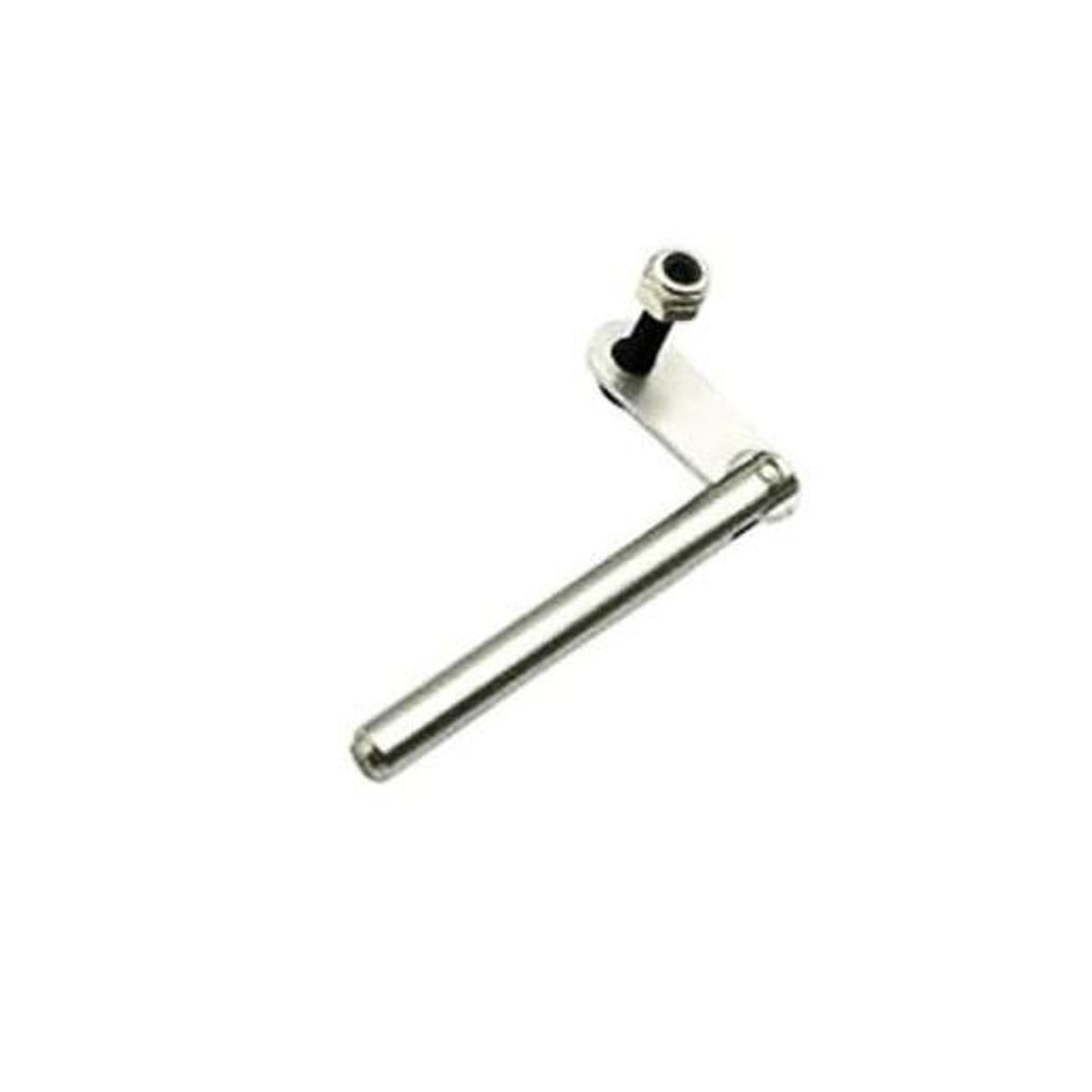

SwellPro SplashDrone 4 Bait Release Pin Arm

Genuine Replacement Pin Arm for SwellPro SplashDrone 4 Bait Releases

The SwellPro SplashDrone 4 Bait Release Pin Arm is the genuine replacement pin-and-lever assembly for the PL1-S and PL2-F payload release systems on the SplashDrone 4. This small mechanical component is the latch point that holds your bait payload securely during flight and actuates to release it on command. With regular fishing use — particularly in Australia's saltwater, sand, and surf conditions — the pin arm is the component most subject to gradual wear, corrosion, and impact loading. Keeping a spare on hand is straightforward, low-cost insurance against the kind of component failure that could ground your drone or cause an unintended bait drop at the worst possible moment.

What the Pin Arm Does and Why It Matters

The SplashDrone 4's PL1-S and PL2-F payload releases operate through a lever-and-pin latch mechanism. When the drone receives the release command, the lever actuates and the pin disengages — allowing the payload gate to open and the bait to drop cleanly to the water. The pin arm is the core mechanical component making this work. Without an intact, correctly functioning pin arm:

• The payload gate may not latch with a firm, positive click when loading — leaving bait insecure during flight and at risk of an unintended early drop.
• The gate may fail to release on command — leaving you unable to deploy bait at the target location after flying the entire distance offshore.
• A bent, cracked, or corroded pin arm can jam the mechanism partially open or closed — potentially damaging the wider payload release assembly if not replaced promptly.

The pin arm is a designed-to-be-serviceable wear component. SwellPro stocks it as a spare part precisely because it is expected to need periodic replacement in active fishing use.

Why Pin Arms Wear Out in Australian Fishing Conditions

SplashDrone 4 owners who fish regularly at Australian beaches and offshore locations will encounter multiple stressors on the pin arm over a full fishing season:

• Repetitive release cycling: Every bait drop operates the lever-and-pin mechanism. High-volume sessions across a full season accumulate significant mechanical wear on the pivot points and latch contact surfaces.
• Saltwater corrosion: Despite the SplashDrone 4's robust waterproofing, saltwater can work into the payload release mechanism over time via repeated immersion and spray. Salt accelerates corrosion on metal pin surfaces and can cause the lever to bind or operate with reduced travel.
• Sand and grit ingress: Beach launches and landings introduce fine sand into the release housing. Abrasive particles accelerate wear on the pin arm's contact surfaces and can cause erratic or delayed actuation if not cleaned regularly.
• Impact loading: Firm landings on hard surfaces, or wave impacts with a payload attached, create brief shock loads on the pin arm beyond normal release-cycle forces — compounding wear over time.
• UV degradation: The plastic lever/arm component is exposed to Australian UV conditions during outdoor use. Extended UV exposure causes polymer components to become more brittle and susceptible to cracking over a full season of use.

Signs Your Pin Arm Needs Replacing

Inspect your SplashDrone 4 PL1-S or PL2-F payload release before every fishing session. Replace the pin arm if you observe any of the following:

• Payload gate does not latch with a firm, positive click when loading bait — gate feels loose, sloppy, or requires unusual force to secure.
• Gate releases without command during flight — bait drops at an unintended time (failed latch, worn pin no longer holding under load).
• Gate fails to release on command — release signal sent but the payload does not drop (jammed or corroded pin arm).
• Visible bending, cracking, pitting, or surface corrosion on the pin or lever arm — any visible deformation warrants immediate replacement before the next flight.
• Stiff, grinding, or inconsistent lever action — indicates salt corrosion or grit ingress within the mechanism.

If you observe any of these symptoms, replace the pin arm before your next offshore flight. A failed bait deployment after flying a kilometre offshore is frustrating; an uncontrolled release over a populated beach is a safety concern.

Compatibility

This pin arm assembly is compatible with:

• SwellPro PL1-S payload release — single-point bait release system for SplashDrone 4
• SwellPro PL2-F payload release — fishing-specific payload release for SplashDrone 4

Important: This pin arm is designed for the SplashDrone 4 platform and its compatible payload releases only. It is not confirmed compatible with SplashDrone 3, SplashDrone 3+, or other SwellPro models. If you are unsure which payload release system is fitted to your drone, or whether this part applies to your specific configuration, contact DroneFisher before ordering — we can confirm compatibility from your release model number.

What's Included

• 1 × replacement release pin
• 1 × plastic lever/arm assembly

Replacement Procedure Overview

Pin arm replacement on the SplashDrone 4 PL1-S and PL2-F releases is a straightforward field-serviceable procedure designed to be completed without specialist tools in most cases:

1. Ensure the drone is powered off and the payload release is fully disarmed before beginning any work on the mechanism.
2. Remove the existing pin arm by releasing the retaining fixture — refer to your SplashDrone 4 payload release documentation or the SwellPro technical guide for your specific variant.
3. Inspect the release housing and gate for debris, salt residue, or additional damage while the arm is removed — clean with a dry brush if needed before fitting the replacement.
4. Insert the new pin arm assembly and confirm it is seated securely in the correct orientation.
5. Manually actuate the gate several times to confirm the latch closes with a positive click and the release opens cleanly before reinstalling on the drone.
6. Power on the drone and perform a ground release test before any fishing mission.

If replacing the pin arm does not resolve the symptom — particularly a binding gate or intermittent release failure after replacement — the issue may lie in the wider payload release assembly rather than the pin arm alone. Contact the DroneFisher team for assessment.

Maintenance Tips: Extend Pin Arm Service Life

• Rinse the payload release assembly with fresh water after every saltwater session — salt build-up is the primary driver of premature pin arm corrosion and binding.
• Allow the assembly to dry fully in a ventilated area before storage; do not trap moisture inside the release housing.
• Inspect the pin arm and gate latch at the start of every session — catching wear early prevents mission failures offshore.
• Avoid beach sand contact with the open release mechanism during baiting — prepare rigs on a clean dry surface where practical.

Why Keep a Spare on Hand?

The SplashDrone 4 represents a significant investment — typically $2,000 or more. The payload release is central to its fishing capability. A worn or failed pin arm doesn't announce itself in advance — it fails on the session when it matters most. Carrying a spare pin arm means a worn component doesn't cancel a planned offshore trip, end a dawn fishing session early, or force you to wait for a part to arrive mid-season. At under $15, this is the lowest-cost reliability insurance available for your SplashDrone 4 setup. Order one now and keep it in your drone bag alongside your spare propellers.

Complete Your SplashDrone 4 Fishing Setup

• Pre-tied drone fishing rigs — paternoster and dropper rigs for the SplashDrone 4's payload range
• Browse the full SwellPro fishing drone range — SplashDrone 4, Fisherman FD1+, and Spry models
• Bait release systems collection — full PL1-S and PL2-F assemblies if complete release replacement is needed rather than a pin arm alone

Unsure if this part number matches your specific PL1-S or PL2-F variant? Contact the DroneFisher team and we'll confirm compatibility before you order.
