Technical details
Specifications

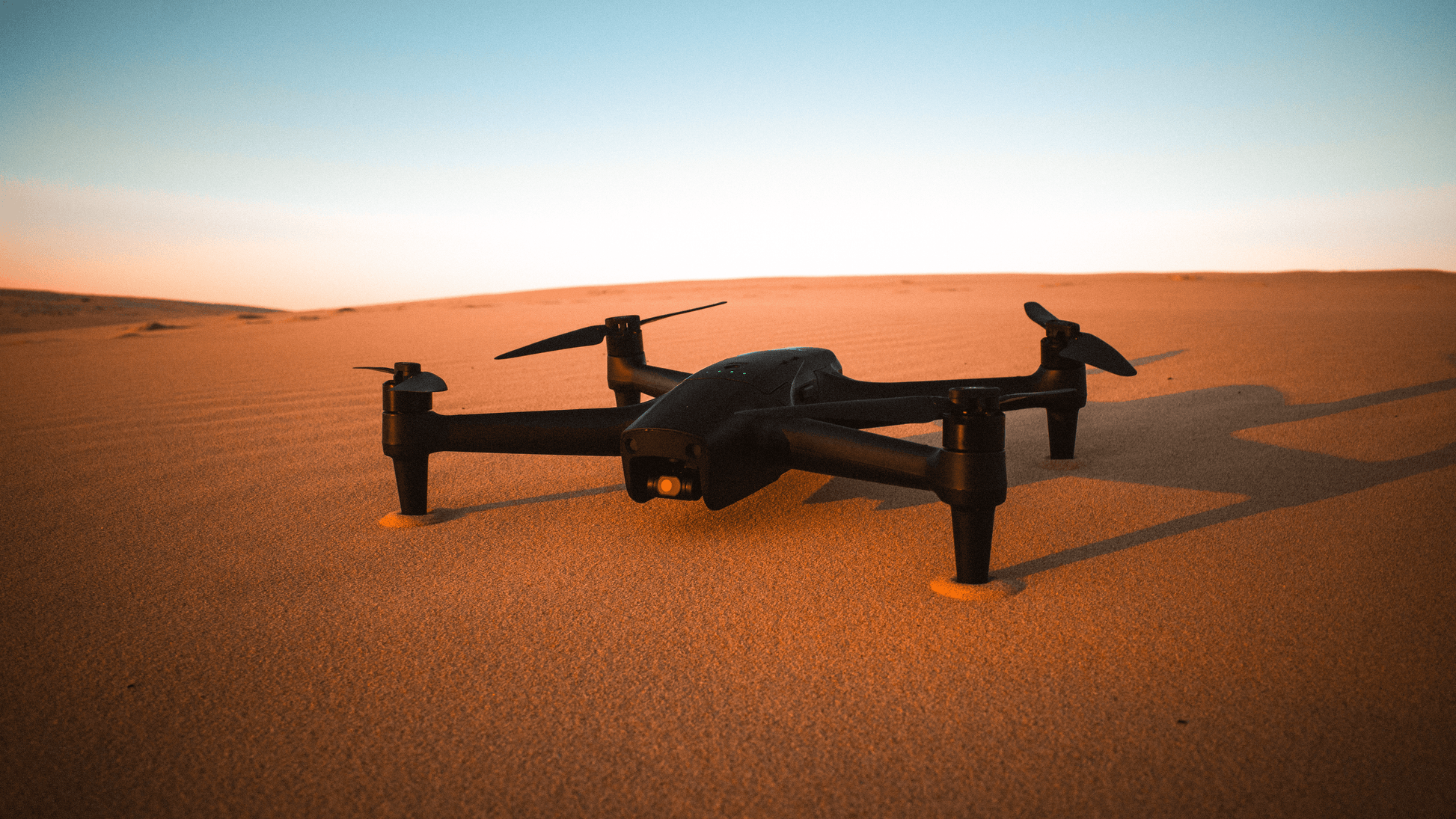

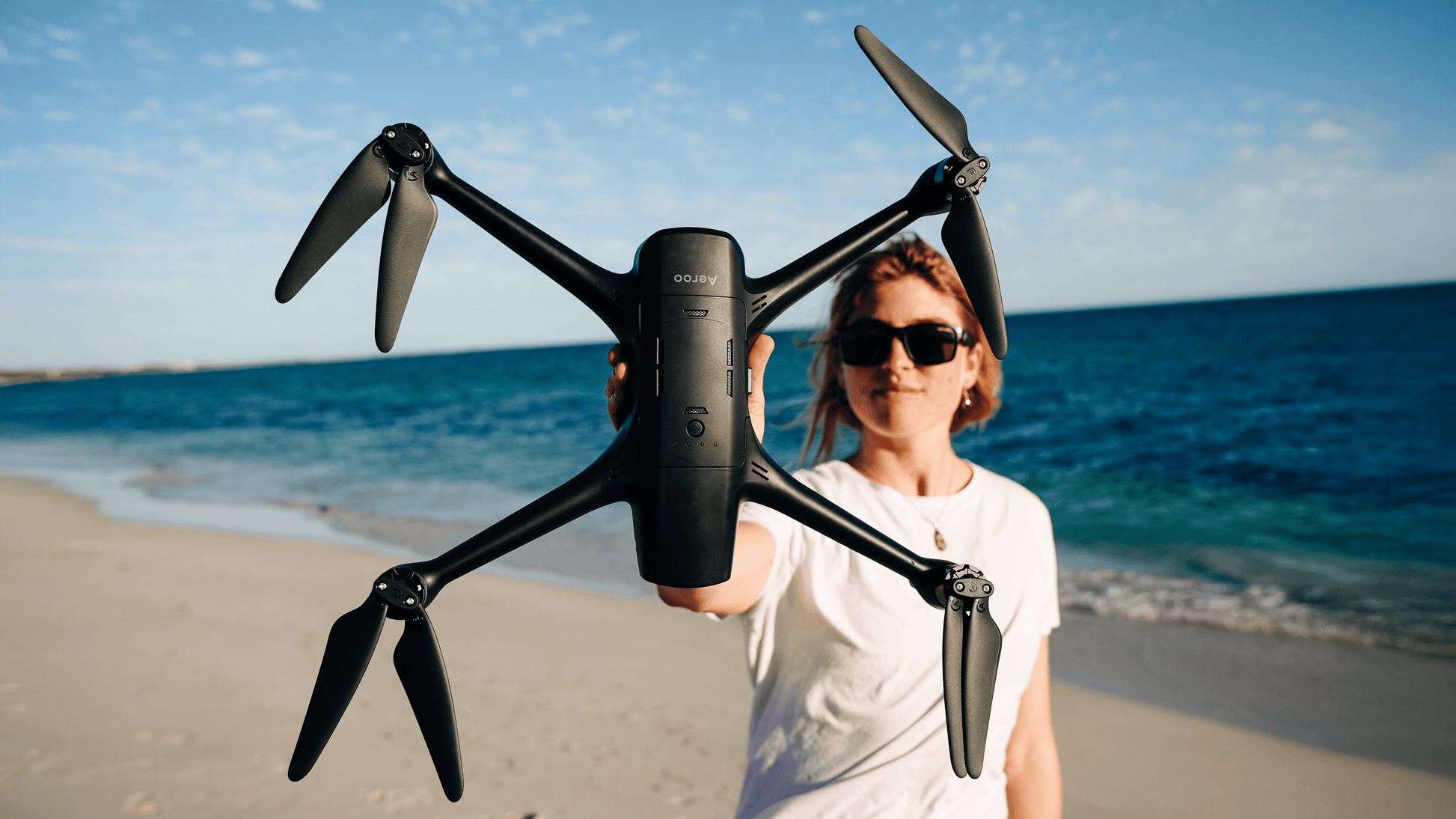

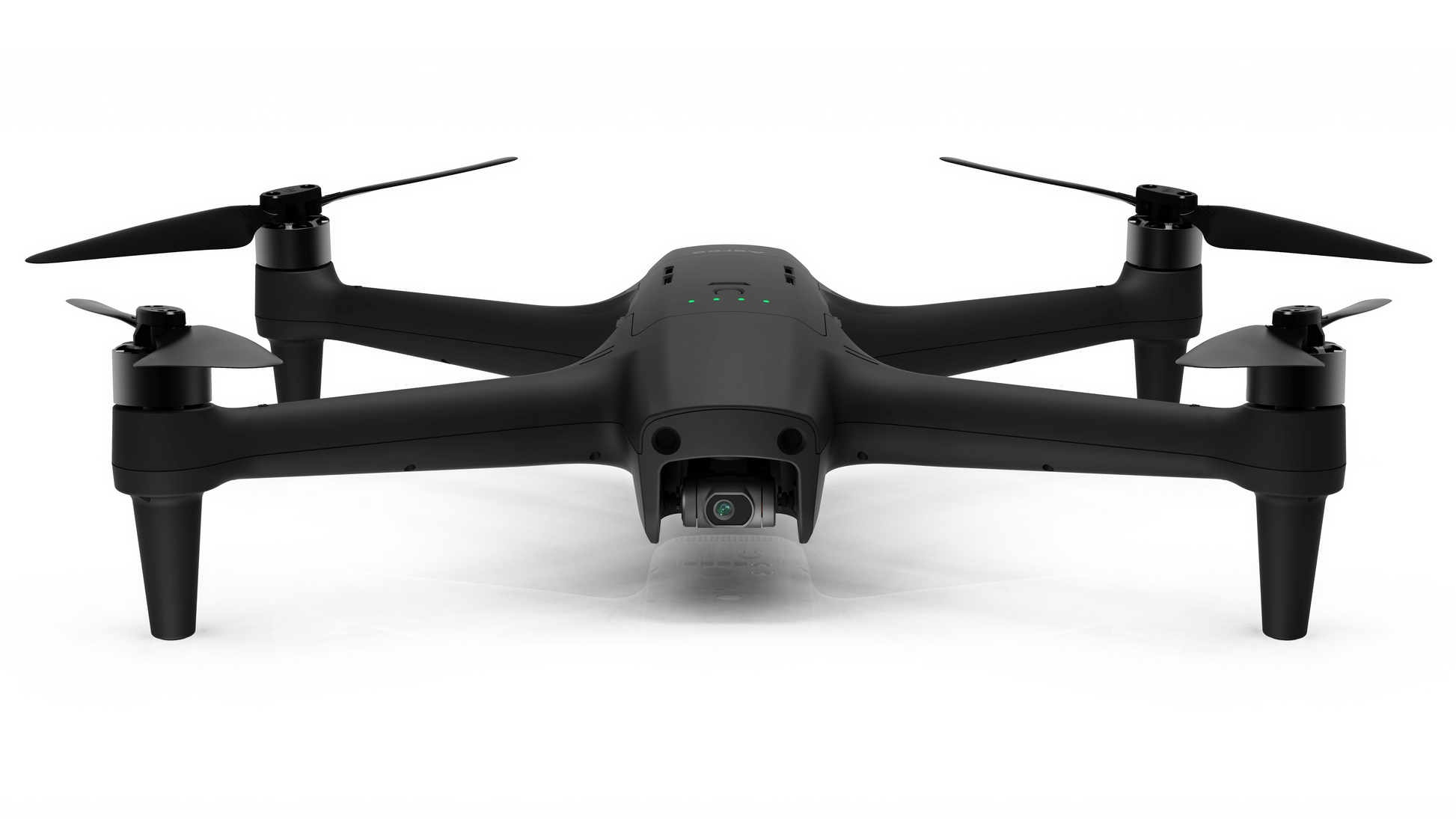

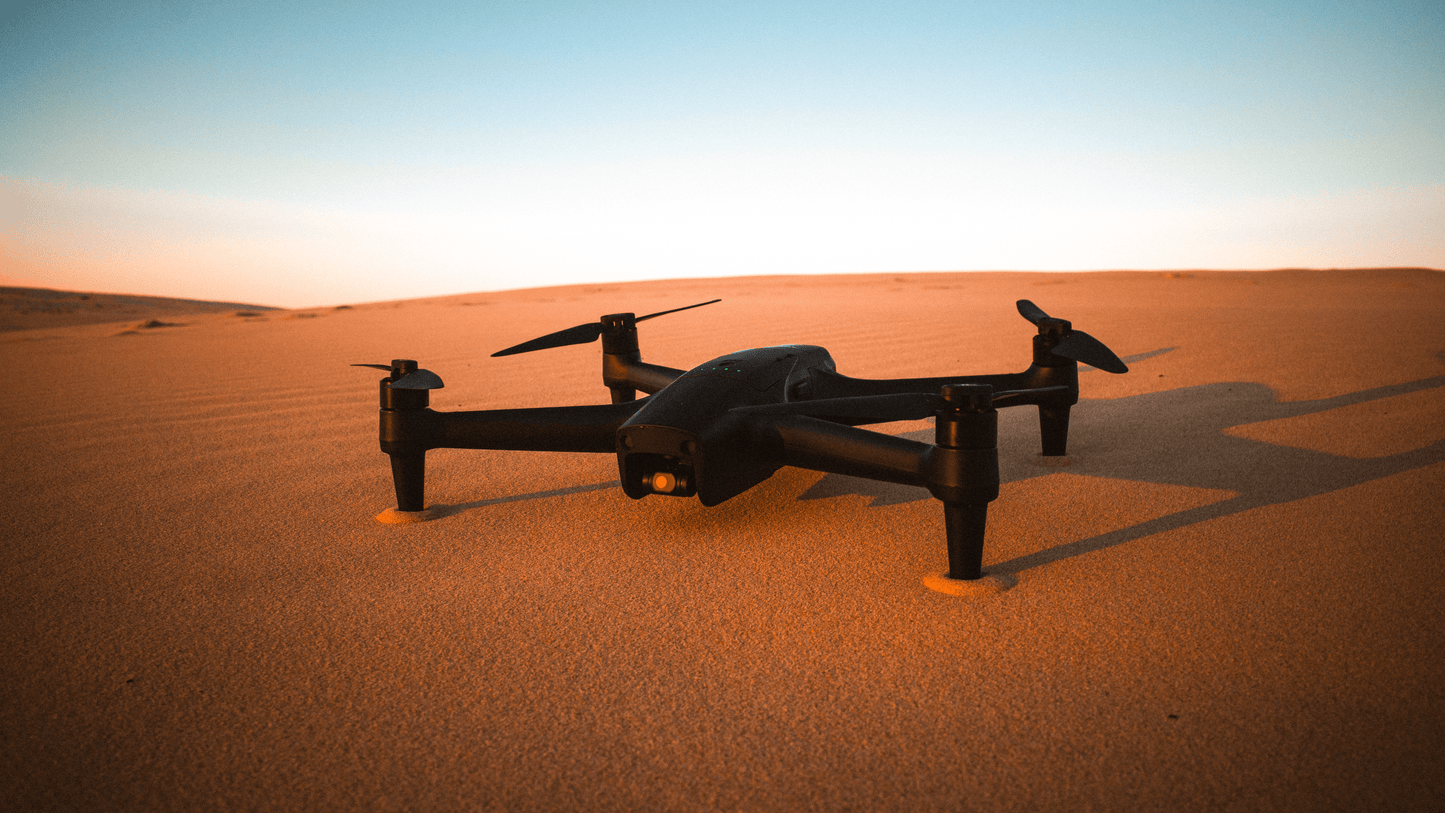

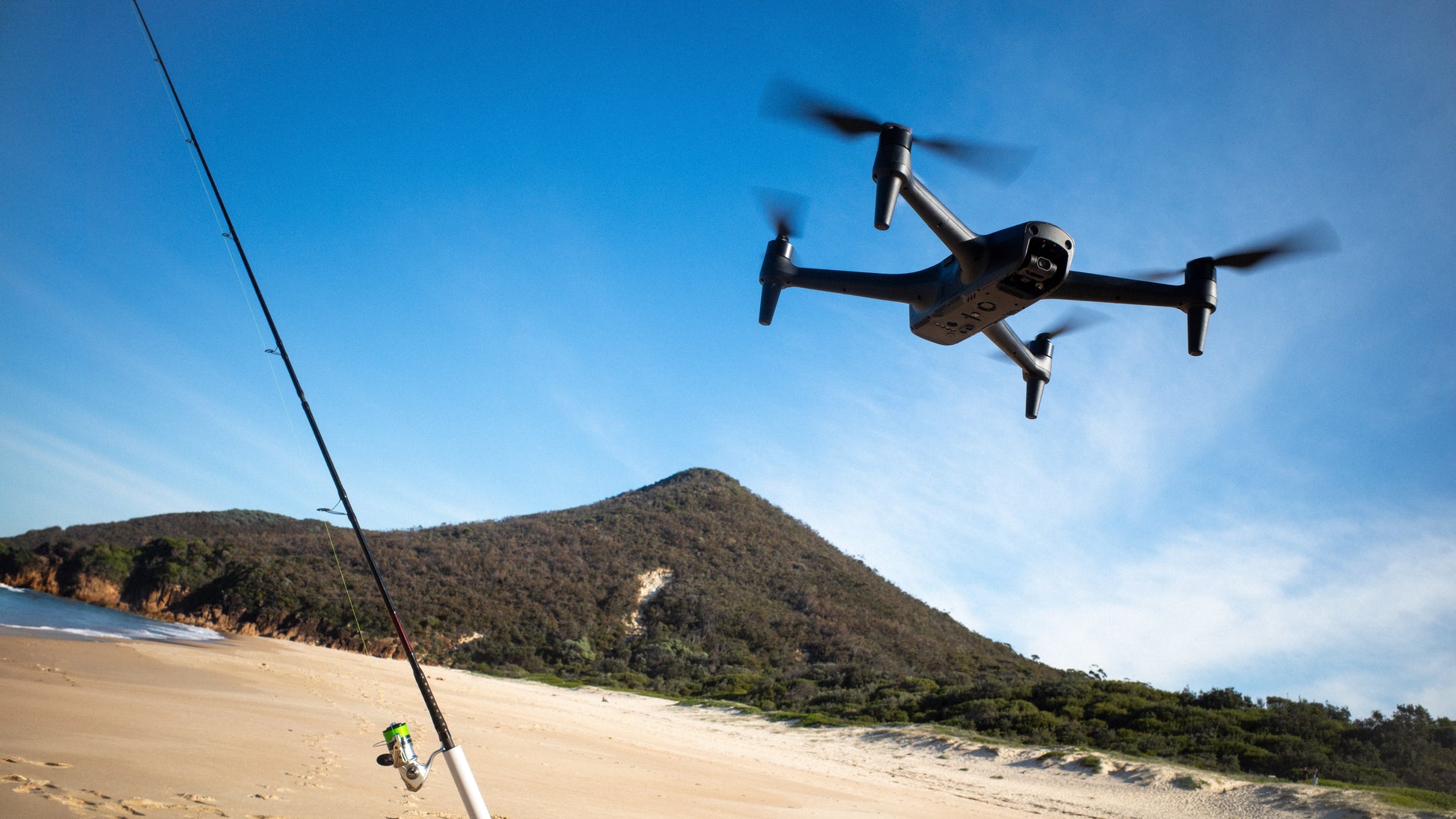

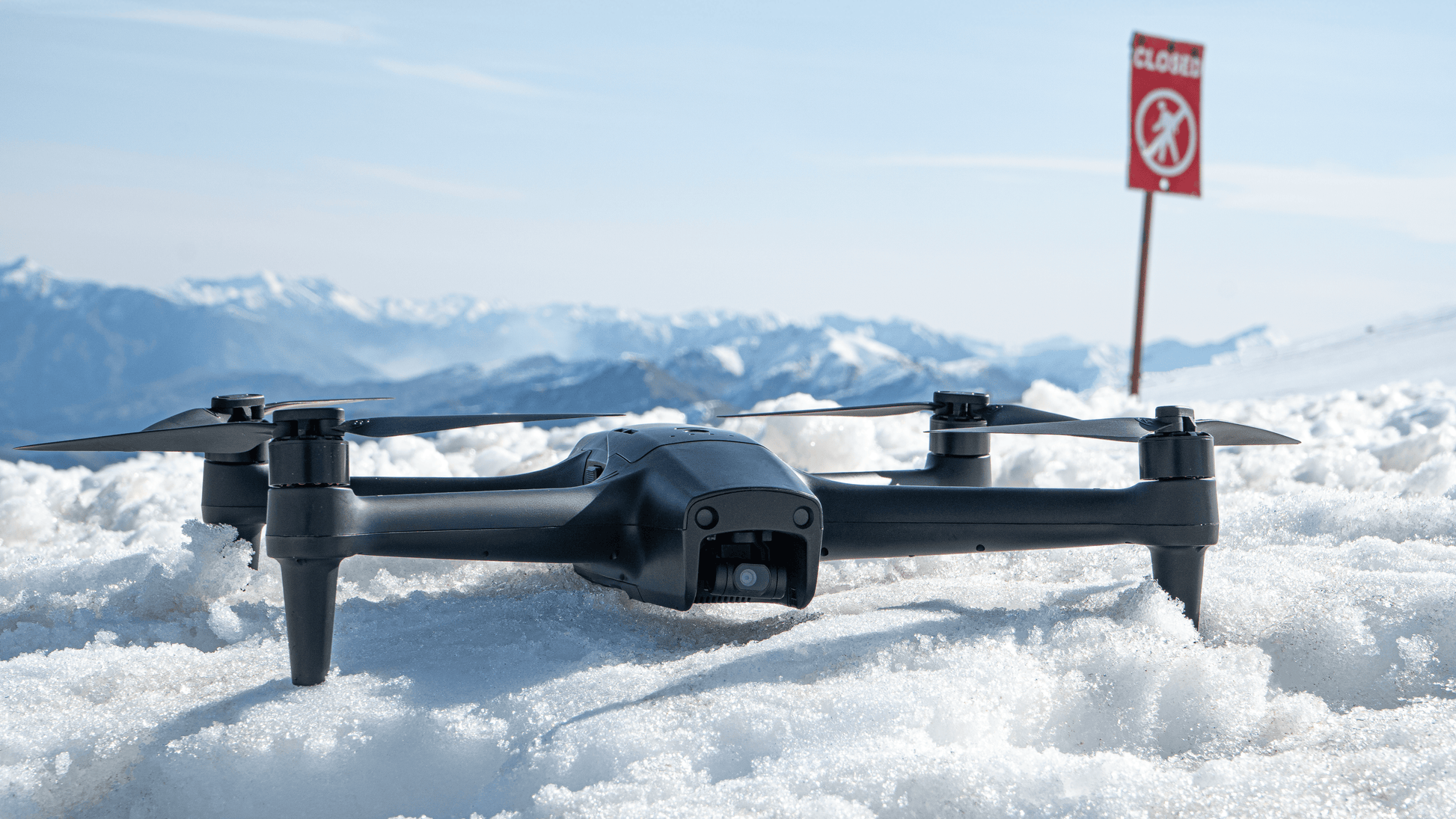

Aircraft
- Colour
- Black
- Diagonal size
- 505 mm
- Dimensions
- 114 × 646 × 552 mm with propellers; 114 × 408 × 320 mm without propellers
- Elemental protection
- Weather-resistant shell; internals protected with corrosion-resistant coating
- Maximum ascending speed
- 15 km/h
- Maximum descending speed
- 11 km/h
- Maximum horizontal speed
- 62 km/h at sea level with no wind
- Maximum payload
- 1 kg
- Maximum takeoff altitude
- 6000 m
- Satellite navigation
- GPS / GLONASS
- Tare weight
- 1540 g
Power System
- Motors
- External brushless motor 2613, 720 KV
- Propellers
- 270 mm folding polycarbonate propellers
Camera
- Image sensor
- 1/2.6-inch CMOS, 12 MP effective pixels
- Lens
- 26 mm equivalent; 80° FOV; f/2.2; focus 0.5 m to infinity
- Video resolution
- 4K 3840×2160@30fps; 2.7K 2720×1530@30fps; FHD 1920×1080@30fps
- Digital zoom
- 6×
Gimbal
- Type
- High-performance brushless three-axis stabilised gimbal
Battery
- Battery
- Intelligent Li-Po 6S, 4000 mAh, 21.6 V, 86.4 Wh
- Working temperature
- -10°C to 40°C
Aircraft
- Maximum flight time
- 28 minutes (payload and condition dependent)
- Wind resistance
- 45 km/h

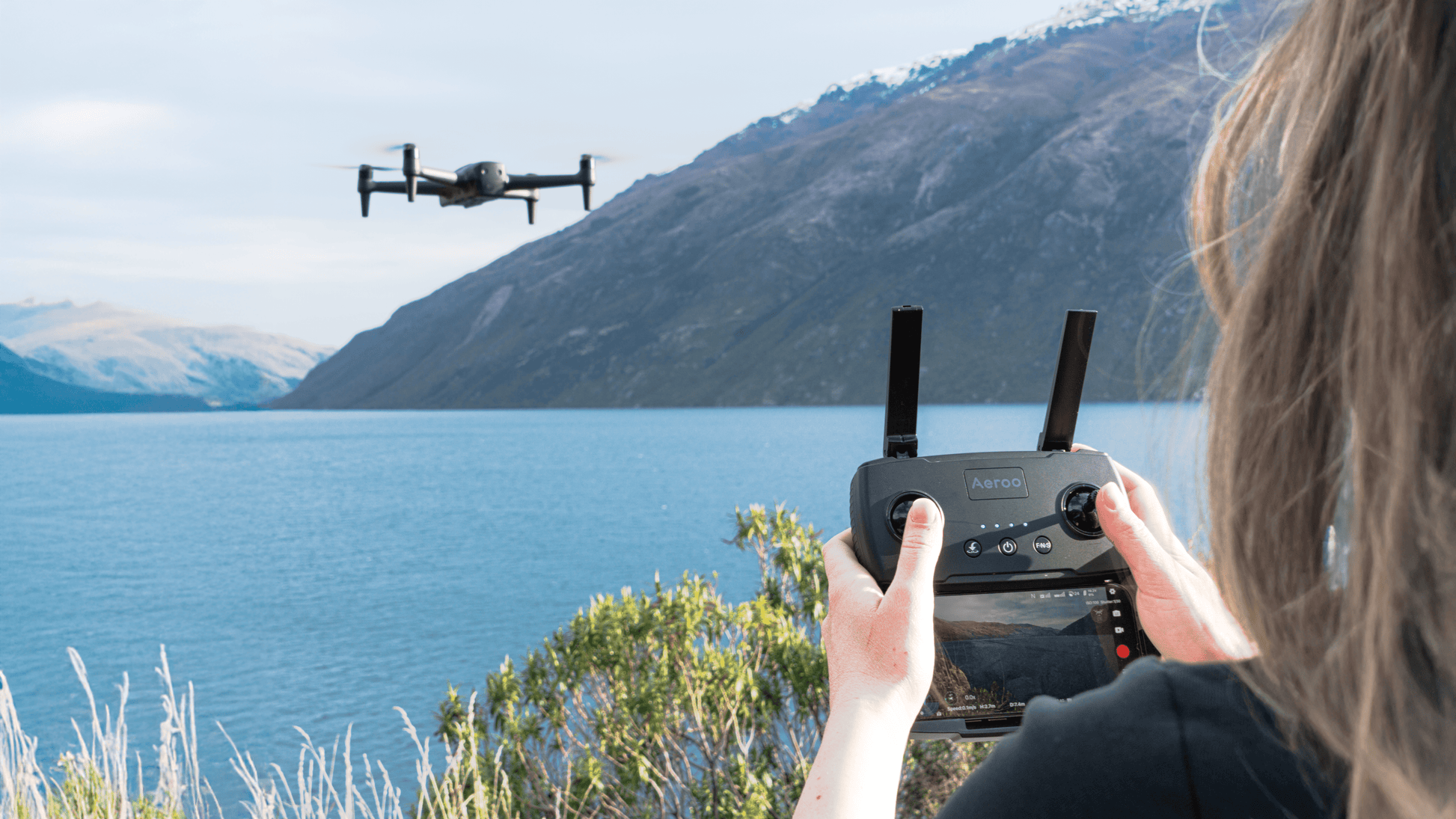

Standard Controller
- Transmission system
- WaveSync
- Maximum control range
- FCC 16 km; CE ≤10 km; SRRC ≤14 km
- Maximum operating time
- 150 minutes
- Battery capacity
- 5000 mAh
- Supported phone interfaces
- Lightning, USB-C, Micro-USB
